Time zones

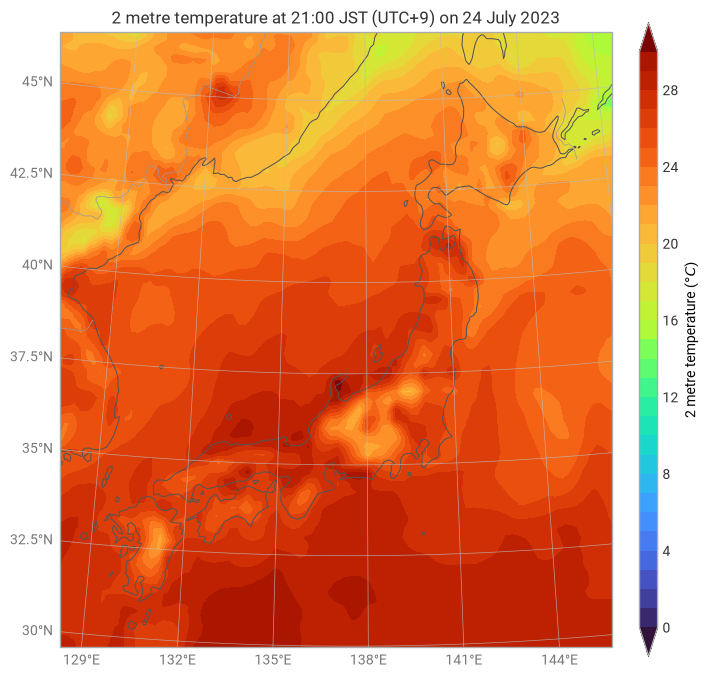

This example demonstrates how to set time zones for the purposes of automatic metadata formatting in titles and labels. Note that earthkit-plots will attempt to identify established time zone conventions in metadata, but if these are not found, it will assume UTC. In the example below, we demonstrate how to use the %Z format spec and the magic utc_offset key to include the ime zone code and the offset from UTC in a title, while setting the time zone to Asia/Tokyo. Notice the warnings that there is no time zone available in the metadata, and that is is (in this case correctly) assuming UTC.

import earthkit.data as ekd
import earthkit.plots as ekp

data = ekd.from_source("sample", "era5-hourly-2t-20230724T1200Z.nc")

chart = ekp.Map(domain="Japan")

chart.plot(data, levels=range(31), colors="turbo", units="celsius")

with ekp.schema.set(time_zone="Asia/Tokyo"):
    chart.title("{variable_name} at {time:%H:%M %Z} ({utc_offset}) on {time:%-d %B %Y}")

chart.coastlines()
chart.borders()
chart.gridlines()

chart.legend(location="right")

chart.show()

Attempting time zone conversion, but some data has no time zone metadata; assuming UTC
Attempting time zone conversion, but some data has no time zone metadata; assuming UTC
Attempting time zone conversion, but some data has no time zone metadata; assuming UTC
