Metadata formatting

earthkit-plots supports metadata-aware format strings in titles, legend labels, and axis labels. Curly-brace placeholders like {variable_name} or {time:%B %Y} are automatically populated from the data’s metadata — regardless of whether it comes from a GRIB file, a netCDF/xarray dataset, or a plain NumPy array with a metadata= dict.

This notebook covers:

• How metadata is read from xarray (variable attrs, global attrs, scalar coordinates, and the variable name itself)

• What {variable_name} looks for and why it is a magic key

• Accessing singleton dimension values in format strings (e.g. {latitude} for a single-point time series)

• Overriding metadata at plot time with the metadata= argument

• Using any arbitrary attribute key in a format string

• How earthkit-plots deduplicates values across layers

• Location formatters for point data

import earthkit.data as ekd

import earthkit.plots as ekp

A quick example

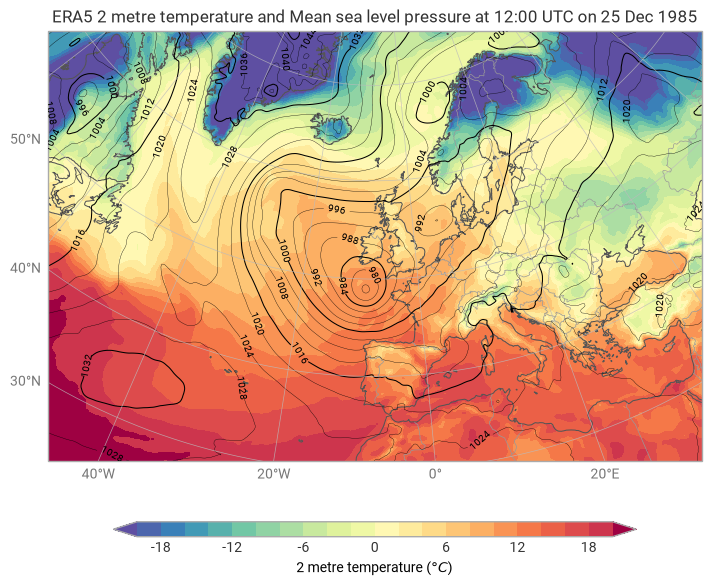

Before diving into the details, here is what the feature looks like in practice. We load a GRIB file containing two fields — 2 m temperature and mean sea-level pressure — and plot them together. All placeholders in the title and legend label are resolved automatically:

data = ekd.from_source("sample", "era5-2t-msl-1985122512.grib").to_fieldlist()
temperature, pressure = data

temp_style = ekp.styles.Style(
    levels=range(-20, 21, 2),
    colors="Spectral_r",
    units="celsius",
    extend="both",
)
pressure_style = ekp.styles.Contour(
    levels={"step": 4},
    colors="black",
    units="hPa",
    linewidths=[0.25, 0.25, 0.25, 0.75],
    labels=True,
    legend_style=None,
)

chart = ekp.Map(domain="North Atlantic")
chart.contourf(temperature, style=temp_style)
chart.contour(pressure, style=pressure_style)
chart.legend(label="{variable_name} ({units})")
chart.coastlines()
chart.borders()
chart.gridlines()
chart.title("ERA5 {variable_name} at {time:%H:%M UTC on %d %b %Y}")
chart.show()

How metadata is read from xarray

When you pass an xr.DataArray or xr.Dataset, earthkit-plots searches for metadata in a fixed priority order:

1. Variable-level ``attrs`` — the attrs dictionary of the selected DataArray (e.g. long_name, units, standard_name).

2. Scalar coordinate values — if a coordinate with the same name as the key exists and has no dimensions (a singleton coordinate), its value is returned. This is how {latitude} and {longitude} work for single-point data (see below).

3. The variable name itself — for the special key "name", earthkit-plots falls back to da.name (the name of the DataArray in its parent Dataset).

4. Dataset-level global ``attrs`` — keys like institution or Conventions stored on the Dataset object are visible to all variables in that dataset.

Let’s inspect what the xarray representation of the ERA5 temperature file looks like:

ds = ekd.from_source("sample", "era5-monthly-mean-2t-199312.grib").to_xarray()
ds

<xarray.Dataset> Size: 8MB
Dimensions:    (latitude: 721, longitude: 1440)
Coordinates:
  * latitude   (latitude) float64 6kB 90.0 89.75 89.5 ... -89.5 -89.75 -90.0
  * longitude  (longitude) float64 12kB 0.0 0.25 0.5 0.75 ... 359.2 359.5 359.8
Data variables:
    2t         (latitude, longitude) float64 8MB ...
Attributes:
    Conventions:  CF-1.8
    institution:  ECMWF

xarray.Dataset

• Dimensions:
  • latitude: 721
  • longitude: 1440
• Coordinates: (2)
  • latitude
    (latitude)
    float64
    90.0 89.75 89.5 ... -89.75 -90.0

    units :

    degrees_north

    standard_name :

    latitude

    long_name :

    latitude

    array([ 90.  ,  89.75,  89.5 , ..., -89.5 , -89.75, -90.  ], shape=(721,))

  • longitude
    (longitude)
    float64
    0.0 0.25 0.5 ... 359.2 359.5 359.8

    units :

    degrees_east

    standard_name :

    longitude

    long_name :

    longitude

    array([0.0000e+00, 2.5000e-01, 5.0000e-01, ..., 3.5925e+02, 3.5950e+02,
           3.5975e+02], shape=(1440,))

• Data variables: (1)
  • 2t
    (latitude, longitude)
    float64
    ...

    standard_name :

    unknown

    long_name :

    2 metre temperature

    units :

    kelvin

    level_type :

    surface

    _earthkit :

    {"message": {"__bytes_b64__": "R1JJQgAAbAEAADSAYpH/gKcBAABdDAEAAAEAAXsC6AAUAAAAAAAAAAAAAAAAAAAAARcCBC8wMDAxAAAAAAAgAP8ABaAC0QFfkAAAAICBX5AFfUYA+gD6AAAAAAAAAAwAgAJEuX1uAAA3Nzc3"}, "bitsPerValue": 16, "grid_spec": {"grid": [0.25, 0.25]}}

    [1038240 values with dtype=float64]

• Attributes: (2)

  Conventions :

  CF-1.8

  institution :

  ECMWF

The dataset carries global attrs (Conventions, institution) at the dataset level, and the variable t2m carries its own variable attrs. All of these are accessible in format strings. Here we use {institution} from the global attrs and {variable_name} from the variable attrs:

chart = ekp.Map(domain="Europe")
chart.contourf(ds, units="celsius", style="auto")
chart.coastlines()
chart.legend(label="{variable_name} ({units})")
chart.title("{variable_name}")
chart.attribution("Source: {institution}", location="lower right")
chart.show()

{variable_name} is a magic key

{variable_name} is not an ordinary attribute lookup - it is a magic key that searches several candidate attributes in priority order until it finds one that is set:

long_name  →  standard_name  →  name  →  short_name

The name entry in that chain is special: for xarray data it falls back to the name of the DataArray itself (e.g. "t2m"). Underscores in the result are automatically replaced with spaces, so "2m_temperature" becomes "2m temperature".

This means {variable_name} works correctly across GRIB, netCDF, xarray, and NumPy data without any extra configuration - and you can still override it by setting long_name on your DataArray or by passing metadata={"long_name": "..."} at plot time.

Other magic keys that follow the same pattern:

Key	Searches
{variable_name}	long_name, standard_name, name, short_name
{ensemble_member}	ensemble_member, realization, number, ensemble, member
{location}	Reverse geocoding from lat/lon (requires reverse-geocode)

Singleton values in format strings

When a coordinate has only a single value - either because it was always scalar or because you selected a particular slice - earthkit-plots makes that value available as a format key with the coordinate’s name.

This is most useful for single-point time series, where the latitude and longitude coordinates are scalars. The ERA5 Reading time series sample is a good example:

era5_ts = ekd.from_source("sample", "era5-reading-timeseries.nc").to_xarray()

# latitude and longitude are scalar coordinates — no dimension
print("latitude :", era5_ts.coords["latitude"].values)
print("longitude:", era5_ts.coords["longitude"].values)

latitude : 51.5
longitude: -1.0

Because they are scalar coordinates, we can use {latitude} and {longitude} directly in format strings. The %Lt and %Ln format specifiers add the degree symbol and N/S or E/W direction:

(
    ekp.timeseries
    .line(era5_ts, color="steelblue", units="celsius")
    .title("ERA5 hourly {variable_name}\n{latitude:%Lt} {longitude:%Ln}")
    .xticks(frequency="D", format="%d %B", period=True)
    .show()
)

The same mechanism applies to any singleton coordinate. If you select a single pressure level from a multi-level dataset, {pressure_level} (or whatever the coordinate is called) will automatically resolve to that value.

Overriding metadata at plot time

Pass metadata= to any plotting method to inject or override key/value pairs. The dict takes precedence over all file-level attributes, making it useful both for data that lacks metadata (NumPy arrays) and for annotating an existing dataset with extra context.

from datetime import datetime

fl = ekd.from_source("sample", "era5-monthly-mean-2t-199312.grib").to_fieldlist()
lats, lons = fl.geography.latlons()
t2m = fl.to_numpy().squeeze()

meta = {
    "units": "K",
    "long_name": "2 metre temperature",
    "time": datetime(1993, 12, 1),
    "institution": "ECMWF",
}

chart = ekp.Map(domain="Europe")
chart.contourf(t2m, x=lons, y=lats, metadata=meta, units="celsius", style="auto")
chart.coastlines()
chart.legend(label="{variable_name} ({units})")
chart.title("{variable_name} – {time:%B %Y}")
chart.attribution("Source: {institution}", location="lower right")
chart.show()

Deduplication

When a chart has multiple layers, earthkit-plots collects the resolved value of each format key from every layer and applies a simple rule:

• If all layers agree on a value, it is shown once.

• If layers disagree, the distinct values are joined into a human-readable list (e.g. "2 metre temperature and Mean sea level pressure").

This is why {time} appears only once in the example below (both fields share the same valid time), while {variable_name} lists both variables.

The same logic applies to legend labels, but there each label is resolved independently per layer — so {variable_name} in a legend label always expands to the name of the single field it belongs to.

chart = ekp.Map(domain="North Atlantic")
chart.contourf(temperature, style=temp_style)
chart.contour(pressure, style=pressure_style)
chart.legend(label="{variable_name} ({units})")
chart.coastlines()
chart.borders()
chart.gridlines()
chart.title("ERA5 {variable_name} at {time:%H:%M UTC on %d %b %Y}")
chart.show()

Location formatters

For single-point data the scalar latitude and longitude coordinates can be formatted with human-readable specifiers:

Specifier	Example output	Notes
{latitude:%Lt}	51.46°N	Default 2 d.p.; use %Lt.0 for no decimals
{longitude:%Ln}	0.94°W	Default 2 d.p.
{location:%c}	Reading	City name — requires reverse-geocode
{location:%C}	United Kingdom	Country name — requires reverse-geocode

Note: {location} requires the optional `reverse-geocode <https://pypi.org/project/reverse-geocode/>`__ package (pip install reverse-geocode). Without it, use {latitude:%Lt} {longitude:%Ln} as a fallback.

(
    ekp.timeseries
    .line(era5_ts, color="steelblue", units="celsius")
    .title("ERA5 hourly {variable_name}\n{latitude:%Lt} {longitude:%Ln} - {location:%c}, {location:%C}")
    .xticks(frequency="D", format="%d %B", period=True)
    .show()
)

Quick reference

Key	What it resolves to
{variable_name}	Human-readable variable name — searches long_name, standard_name, name, short_name
{units}	Units after any conversion applied at plot time
{time:%d %B %Y}	Valid time, formatted with standard strftime codes
{base_time} / {valid_time}	Forecast base time and valid time
{lead_time}	Forecast lead time in hours
{domain}	Name of the map domain (named domains only)
{crs}	Name of the map projection
{latitude:%Lt}	Latitude with degree symbol and N/S direction
{longitude:%Ln}	Longitude with degree symbol and E/W direction
{location:%c}	City name (requires reverse-geocode)
{location:%C}	Country name (requires reverse-geocode)
{ensemble_member}	Ensemble member number
{<any attr>}	Any key present in the data’s metadata
