2. Using quickplot

In the previous section, we introduced the earthkit.plots.quickplot function as a powerful tool for quickly visualising data with a single line of code.

In this section, we will explore additional features of quickplot, including:

  • Overlay and subplot modes

  • Grouping layers on subplots

  • Customising quickplot workflows

Quickplot with multiple fields

To begin, let’s load some sample data from ECMWF’s ERA5 dataset, using earthkit-data:

[1]:

import earthkit as ek

data = ek.data.from_source("sample", "era5-2t-msl-1985122512.grib")
data.ls()

[1]:
centre shortName typeOfLevel level dataDate dataTime stepRange dataType number gridType
0 ecmf 2t surface 0 19851225 1200 0 an 0 regular_ll
1 ecmf msl surface 0 19851225 1200 0 an 0 regular_ll

The output of data.ls() shows that this dataset contains two fields: 2m temperature (2t) and mean sea level pressure (msl).

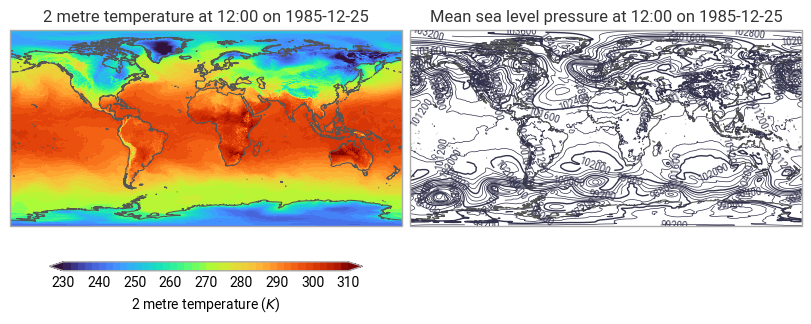

By default, quickplot will generate a separate plot for each identified field (which can also be explicitly requested with mode="subplots"):

[2]:

ek.plots.quickplot(data).show()
../../_images/examples_guide_02-quickplot_6_0.png

Overlaying multiple fields

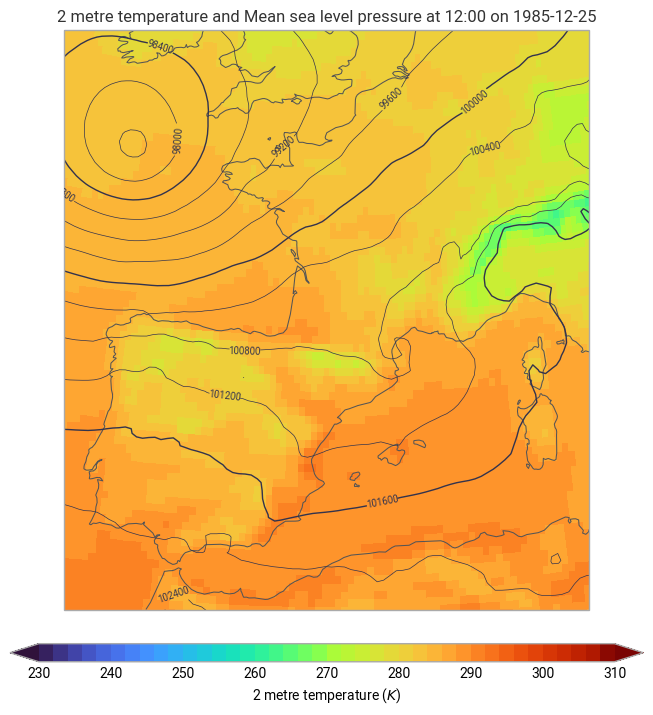

Using mode="overlay", you can plot multiple fields on the same subplot. For example, to overlay the 2m temperature and mean sea level pressure fields over Spain and France:

[3]:

ek.plots.quickplot(data, domain=["Spain", "France"], mode="overlay").show()
../../_images/examples_guide_02-quickplot_8_0.png

Grouping layers

A common requirement is to group multiple fields on each subplot. For example, if you have wind gusts and mean sea level pressure across different time steps, you may want to group the fields based on their validity time.

Example: Grouping Weather Forecast Data

Let’s load a weather forecast dataset containing mean sea level pressure (msl) and wind gusts (10fg6) at multiple timesteps:

[4]:

data = ek.data.from_source("url", "https://get.ecmwf.int/repository/test-data/metview/gallery/fc_msl_wg_joachim.grib")
data.ls()

[4]:
centre shortName typeOfLevel level dataDate dataTime stepRange dataType number gridType
0 ecmf msl surface 0 20111215 0 0 fc 0 regular_ll
1 ecmf 10fg6 surface 0 20111215 0 0 fc 0 regular_ll
2 ecmf msl surface 0 20111215 0 6 fc 0 regular_ll
3 ecmf 10fg6 surface 0 20111215 0 0-6 fc 0 regular_ll
4 ecmf msl surface 0 20111215 0 12 fc 0 regular_ll
5 ecmf 10fg6 surface 0 20111215 0 6-12 fc 0 regular_ll
6 ecmf msl surface 0 20111215 0 18 fc 0 regular_ll
7 ecmf 10fg6 surface 0 20111215 0 12-18 fc 0 regular_ll
8 ecmf msl surface 0 20111215 0 24 fc 0 regular_ll
9 ecmf 10fg6 surface 0 20111215 0 18-24 fc 0 regular_ll
10 ecmf msl surface 0 20111215 0 30 fc 0 regular_ll
11 ecmf 10fg6 surface 0 20111215 0 24-30 fc 0 regular_ll
12 ecmf msl surface 0 20111215 0 36 fc 0 regular_ll
13 ecmf 10fg6 surface 0 20111215 0 30-36 fc 0 regular_ll
14 ecmf msl surface 0 20111215 0 42 fc 0 regular_ll
15 ecmf 10fg6 surface 0 20111215 0 36-42 fc 0 regular_ll
16 ecmf msl surface 0 20111215 0 48 fc 0 regular_ll
17 ecmf 10fg6 surface 0 20111215 0 42-48 fc 0 regular_ll

This dataset contains multiple 9 wind gust fields and 9 sea level pressure fields, each with a different forecast time (stepRange).

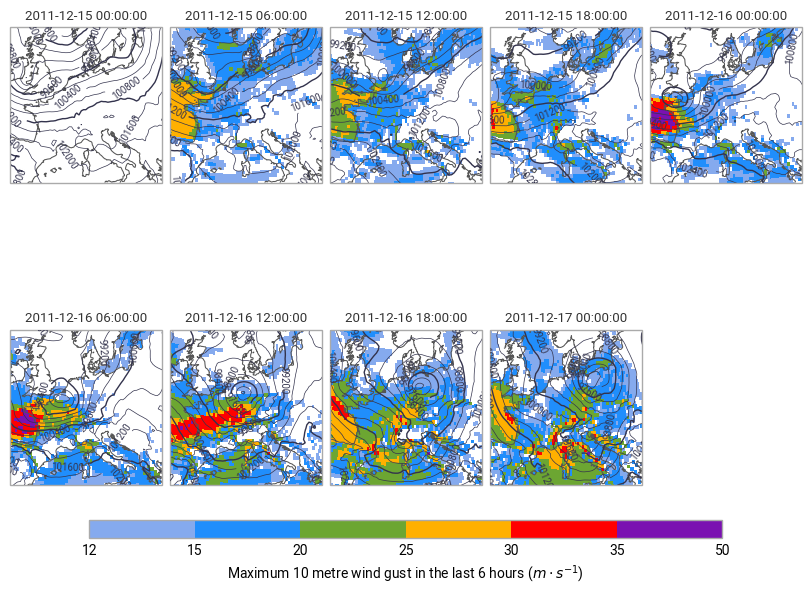

To group the data by validity time, use the groupby argument:

[5]:

ek.plots.quickplot(data, domain=[-5, 23, 38, 60], groupby="valid_time").show()
../../_images/examples_guide_02-quickplot_12_0.png

Each subplot now represents a specific validity time, with both mean sea level pressure and wind gusts displayed together.

NOTE: The groupby option is not compatible with mode=”overlay” - the overlay mode will always put all fields on the same subplot.

Customising quickplot workflows

You can further customize your plots by modifying the earthkit-plots schema (which we will cover in more detail later in this user guide). This allows you to control the elements that appear in your plots.

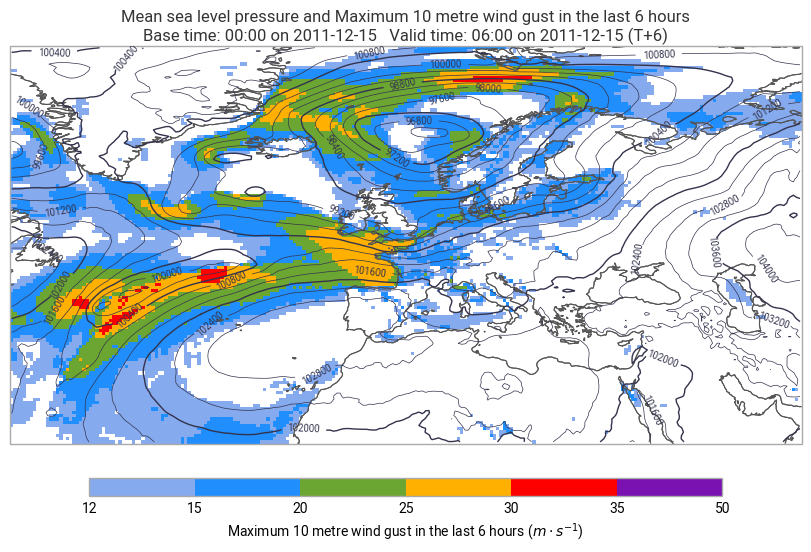

For example, to define a custom quickplot workflow that includes coastlines and titles, use:

[6]:

with ek.plots.schema.set(quickmap_subplot_workflow=["coastlines", "title"]):
    ek.plots.quickplot(data.sel(valid_time="2011-12-15T06:00:00"), mode="overlay")
../../_images/examples_guide_02-quickplot_15_0.png

This ensures that every generated plot includes coastlines and a title by default.

What’s next?

In this section we covered some of the flexible options for quickplot, allowing you to visualise complex datasets in a single line of code.

However, while quickplot is a useful method of quickly visualising a dataset, its super-concise API doesn’t make it easy to produce highly customised plots with user-defined layouts, styles and layers.

In the next section, we will explore the fundamental components of earthkit-plots figures, and explore how to build a plot from scratch.
