1. Getting started with earthkit-plots

Welcome to the earthkit-plots user guide!

earthkit-plots is the visualisation component of earthkit, a collection of Python libraries designed to simplify the process of accessing, processing and visualising weather and climate science data.

earthkit helps speed up earth science workflows by providing high-level tools which remove large amounts of the boilerplate code usually required for performing common tasks. In this introduction, we are going to use earthkit-plots to quickly and conveniently visualise some data on a graph. We will then use earthkit-data to work with a geospatial dataset, and visualise it on a map.

What is earthkit-plots?

earthkit-plots leverages the power of the earthkit ecosystem to make producing publication-quality scientific graphics as simple and convenient as possible. It is built on top of matplotlib and cartopy, but provides a very high-level API and a wealth of domain-specific knowledge to provide features like:

  • shortcuts and convenience methods which reduce the amount of code you need to write to produce a high-quality visualisation

  • formatting of titles and labels using templates which understand a wide range of common metadata standards

  • creating and swappong out style libraries based on your organisation, project or personal choice

  • automatic styling of data variables based on metadata detection, including unit detection.

Creating a plot with quickplot

The quickest way to get started with earthkit-plots is with the quickplot submodule.

[1]:

import earthkit.plots.quickplot as qplt

quickplot contains convenience functions for quickly taking some data and putting it onto a plot. It will style the plot based on whichever style library you have installed (more on that later), and is designed to help you quickly and easily take a look at your data with minimum code.

[2]:

p = qplt.plot([-1, 1, 0, 2, 1, 3])

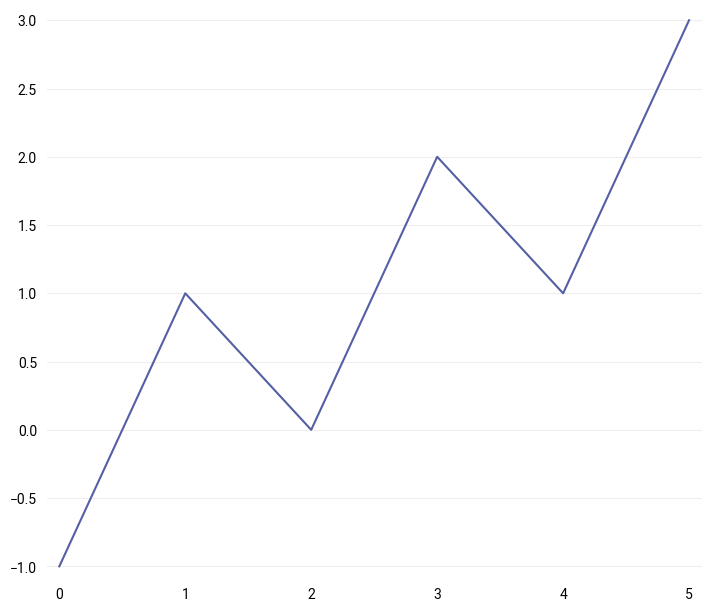

../../_images/examples_guide_01-introduction_8_0.png

Creating a map with quickmap

The same principles apply for generating quick plots of geospatial data, for which the quickmap submodule should be used.

[3]:

import earthkit.plots.quickmap as qmap

We can load in some sample data using the earthkit-data package:

[4]:

import earthkit.data

data = earthkit.data.from_source("sample", "era5-monthly-mean-2t-199312.grib")
data.ls()

[4]:
centre shortName typeOfLevel level dataDate dataTime stepRange dataType number gridType
0 ecmf 2t surface 0 19931201 0 0 an 0 regular_ll

Here we have downloaded some sample data - in this case taken from ECMWF’s ERA5 reanalysis dataset, specifically the monthly mean air temperature for December 1993. You can learn more about working with a wide range of data formats in the earthkit-data documentation.

Now that we have some data, all we need to do is pass it to quickmap’s plot function, which will do its best to find a suitable style for the given data:

[5]:

qmap.block(data, domain="France", levels=range(250, 300))

[5]:

<earthkit.plots.components.maps.Map at 0x17fede500>

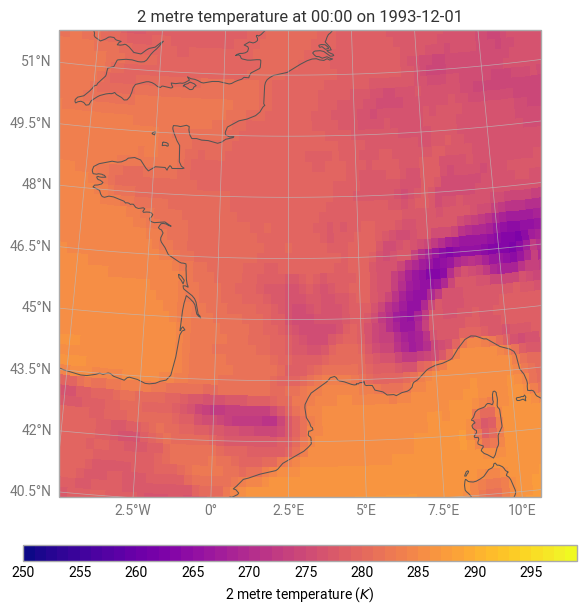

../../_images/examples_guide_01-introduction_15_1.png

In this case, using the default style library built into earthkit-plots, a pre-defined style which matches the input data has been found and applied. This is optional behaviour, which can be switched off temporarily or permanently using the earthkit-plots schema system, which will be explored in more detail later in this user guide.

[6]:

with earthkit.plots.schema.set(automatic_styles=False):
    qmap.plot(data)

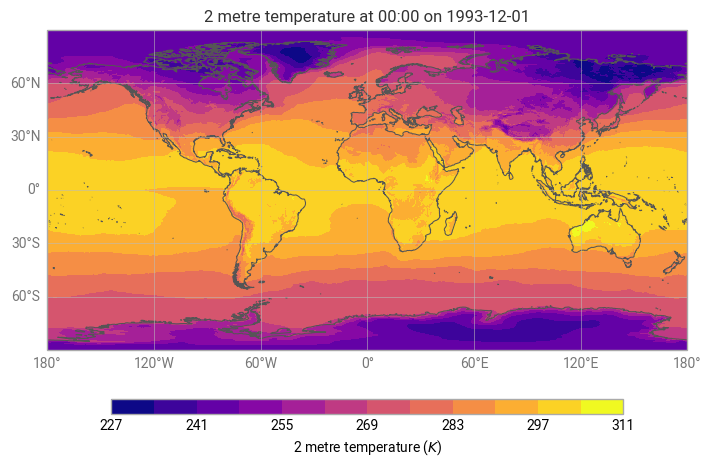

../../_images/examples_guide_01-introduction_17_0.png

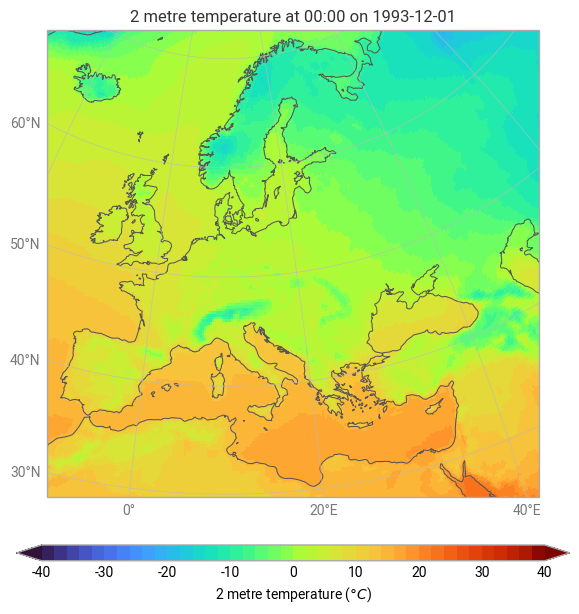

We can also pass information to quickmap about the domain on which we would like to visualise the data, or the units that we would like to use.

[7]:

qmap.plot(data, domain="Europe", units="celsius")

[7]:

<earthkit.plots.components.maps.Map at 0x2870f0f40>
../../_images/examples_guide_01-introduction_19_1.png
